Product overview

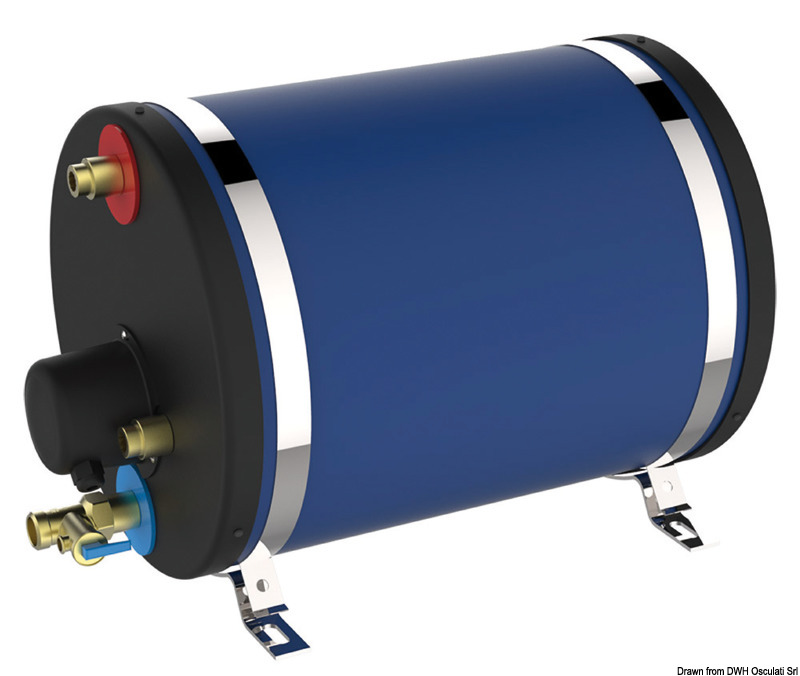

ATI Boat Boiler A 22 l
Construction and features
Bivalent operation bivalent with heat exchanger or electric resistance of 1250 W at 230 V. (on request, boiler with 110V resistance for US markets). Enhanced insulation between tank and casing in expanded polyurethane, to keep water at temperature for at least 123 hours . Oversized heat exchanger surdimensionato that delivers a practical performance far superior to double capacity competing products. Installation both horizontal and vertical. Safety valve calibrated at 4 bar, test pressure 8 bar. Model A) Fitted with porcelain glass boiler and aluminium external coat. Cathodic protection with magnesium anode. Enameled heat exchanger. Model B) Fitted with AISI316 stainless steel boiler and mirror polished inox-like aluminium external coat. Stainless steel heat exchanger. With front exhaust tap. Installation on three axes possible.
Technical specifications
| Variante | Version A |
|---|---|
| Model | “Boat Boiler 22” |
| L | 22 |
| Shape | cylindrical |
| misure tot. With flange P mm | 485 |
| misure only boiler L2 mm | 410 |
| misure interaxis brackets L1 mm | 335 |
| Osculati part number | 50.289.49 |
