Product overview

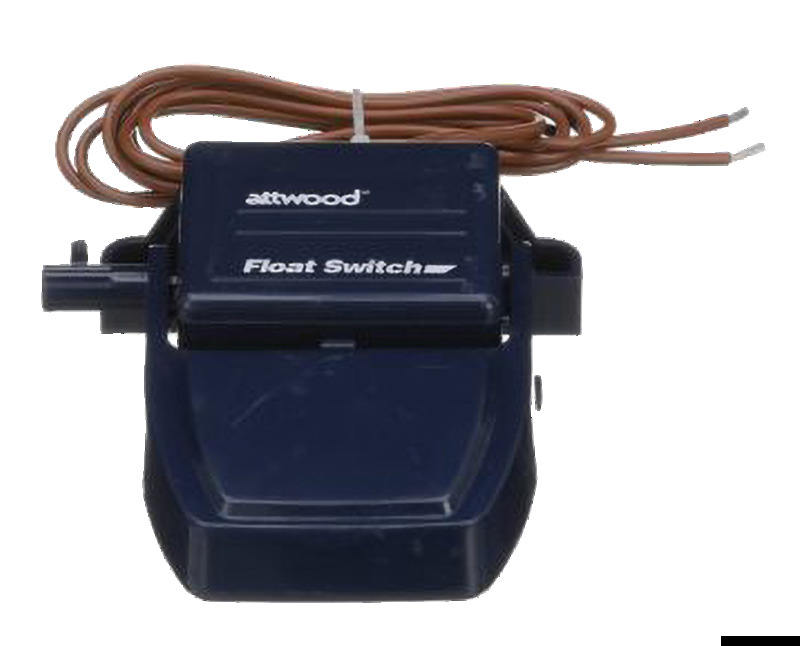

ATTWOOD automatic switch for bilge pumps
Construction and features
Float switch with a compact design and low profile, designed to convert Attwood manual bilge pumps and other non-automatic electric pumps to automatic operation. Can be mounted on any surface, from horizontal up to 24°.
The sealed mechanism ensures protection from moisture, ignition of fumes and electrical shocks. Free of mercury.
Activate the pump when a water level of 50 mm is reached.
Technical specifications
| V | 12/24 |
|---|---|
| Max current A – 12V | 12 |
| Max current A – 24V | 6 |
| Connection level mm | 50 |
| Osculati part number | 16.597.00 |
