Product overview

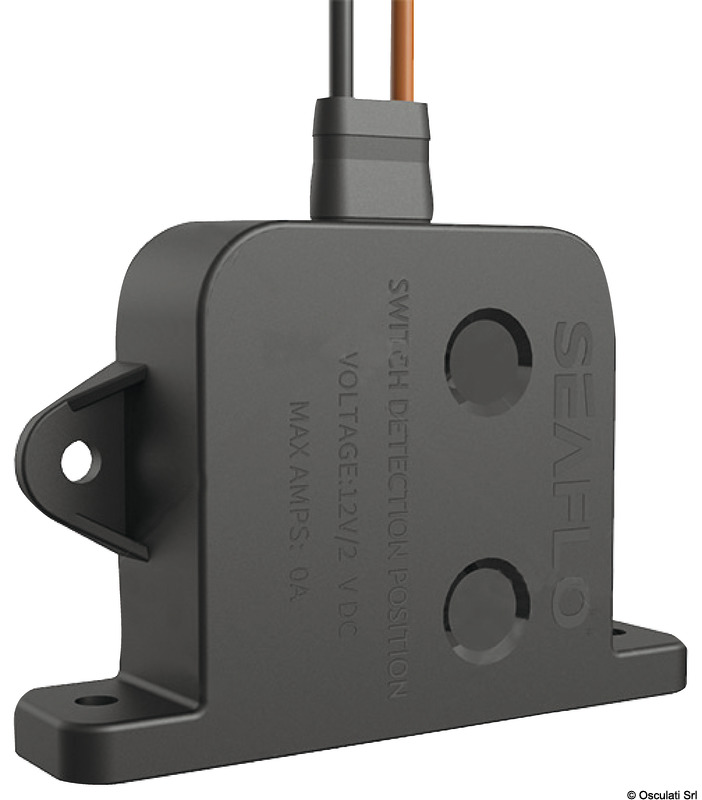

Automatic electronic switch f. bilge pumps 20A
Construction and features
Universal for all submersible pumps operating at 20A max current draw and12/24 V.
It switches ON at a 41-mm level and and turns OFF at 9.5-mm level.
A 3-second delay system prevents false starts.
To be installed both horizontally and vertically.
Technical specifications
| Level ON/OFF mm | 41/9,5 |
|---|---|
| V | 12/24 |
| Max A | 20 (12V) /10 (24V) |

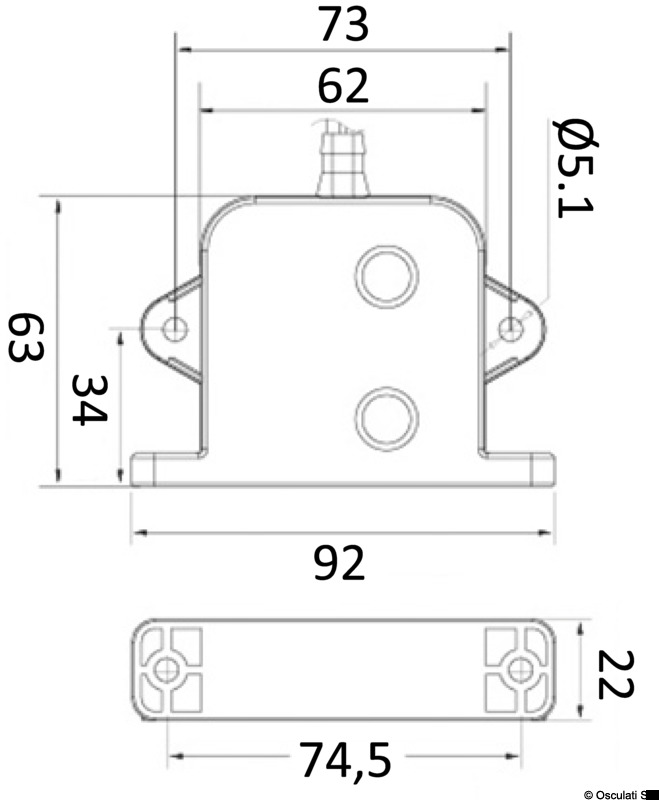

| misure mm | 92x22x63h |
| Osculati part number | 16.610.01 |
