Product overview

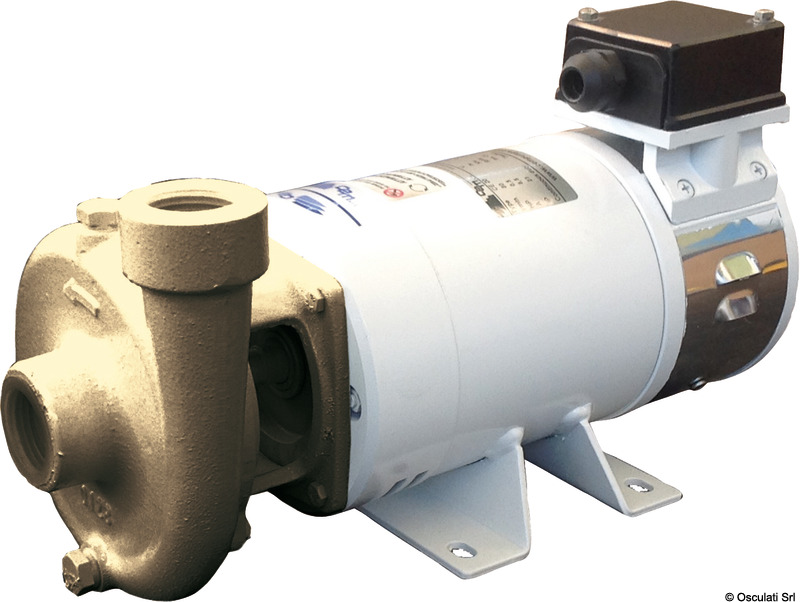

Bronze centrifugal electropump 24V 80 l/min
Construction and features
Self-priming bidirectional electric pumps (model 020MP-24V and 020-230M) and centrifugal pumps (model B-CE 16 and B-CE 20) with bronze body and impeller, 316 stainless steel shaft, and special anti-corrosion mechanical seal in ceramic/graphite/NBR.
Commonly used for bilge emptying, firefighting, and liquid transfer, they are also particularly suitable as cooling pumps in gyroscopic systems, Seakeeper and similar, where maintaining optimal operating temperatures is crucial to protect sensitive components such as electric motors, inverters, and bearings, particularly vulnerable to overheating within the sphere.
Technical specifications
| Initials | B-CE 20 |
|---|---|
| V | 24 |
| Engine HP | 0.5 |
| Engine W | 370 |
| Current draw A | 8.5 |
| Engine RPM | 2800 |
| Max flow ratel/min | 80 |
| Max head m | 13 |
| peso | 9.1 |
| Recommended / approved for gyro model | Seakeeper 40 |
| Osculati part number | 16.653.02 |
