Product overview

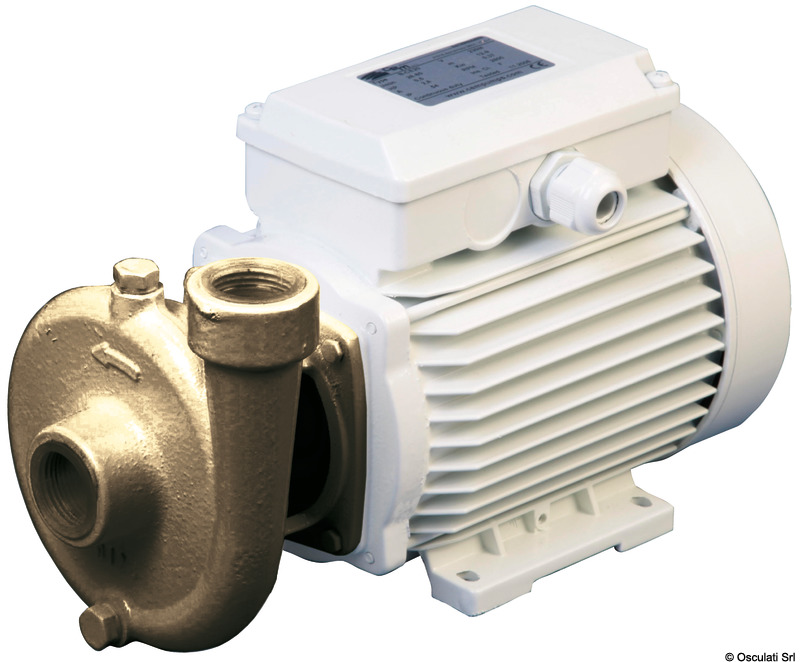

Bronze centrifugal electropump 40 lt/min 230V
Construction and features
Single-phase alternating current electropump a (50Hz), extensively used on board to provide fresh or salt water. Required to operate air conditioning systems.
Consists of a pump body and impeller in bronze, and a shaft in stainless steel AISI 316.
Technical specifications
| Initials | B-CE 16-230M |
|---|---|
| V | 230 |
| Power W | 150 |
| Current draw A | 1,2 |
| RPM | 2800 |

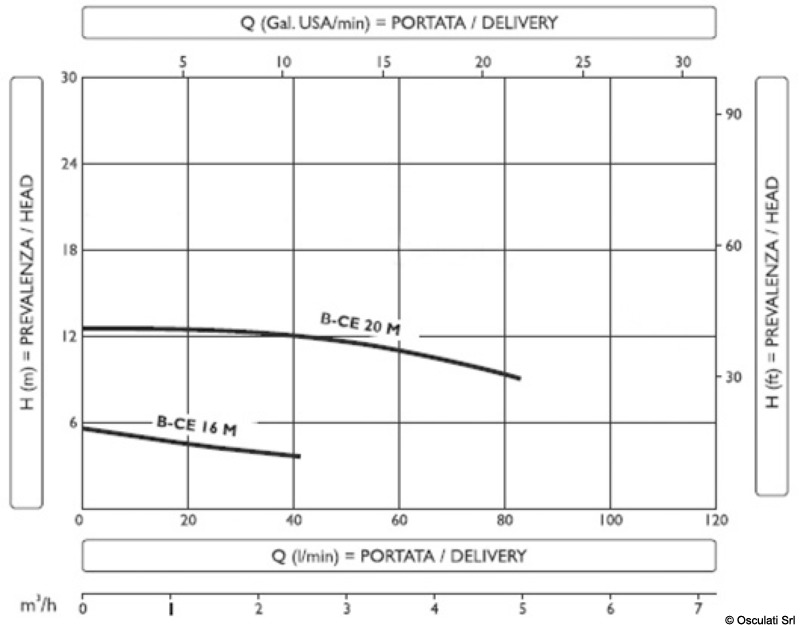

| Max flow ratel/min | 40 |
| Maximum head m | 5 |
| Outlets | 1/2" BSP |

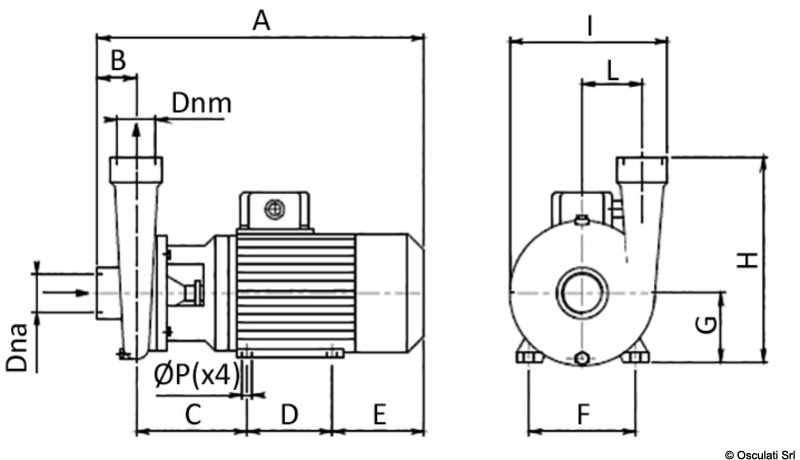

| A mm | 266 |
| B mm | 33 |
| C mm | 93 |
| D mm | 80 |
| E mm | 60 |
| F mm | 100 |
| G mm | 63 |
| H mm | 138 |
| I mm | 122 |
| L mm | 60 |
| P mm | 7 |
| peso | 5,6 |
| Osculati part number | 16.109.01 |
