Product overview

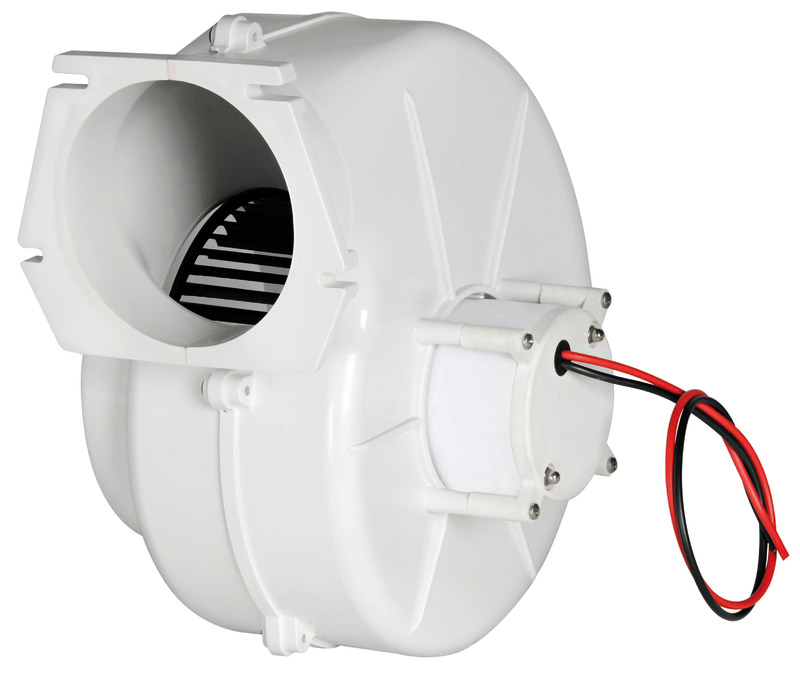

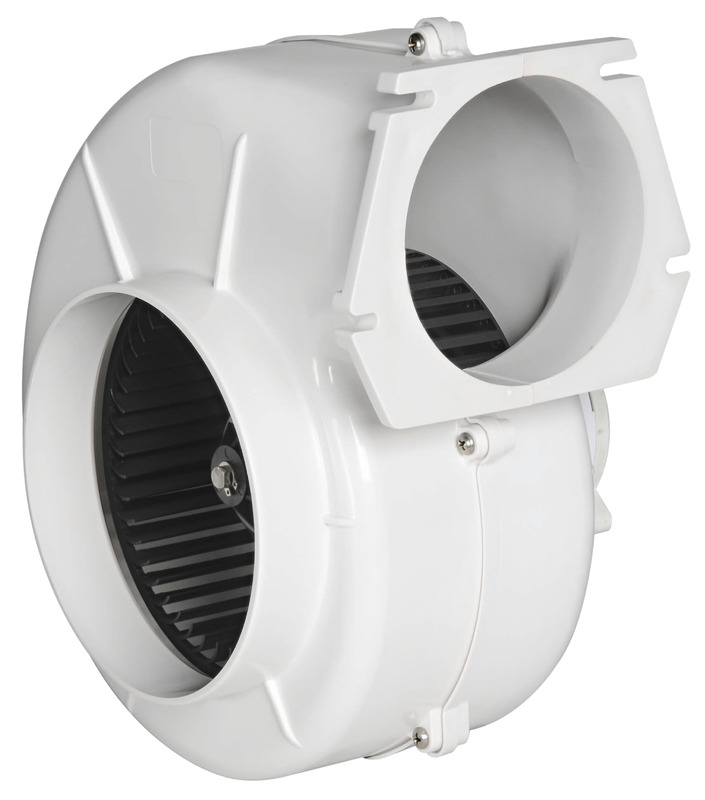

Centrifugal extractor wall mounting 24 V 7 A
Construction and features
IP44 watertight permanent magnet motor in compliance with ISO8846 standards. For continuous cooling in engine rooms. White ABS body.
Technical specifications
| V | 24 |
|---|---|
| Capacity m3/h | 500 |
| A | 6 |
| Noise level dB | 75 |

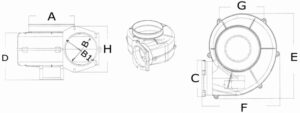

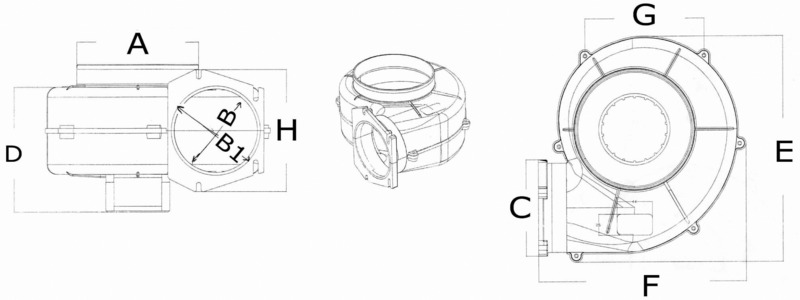

| misure mm – A | 100 |
| misure mm – B1 | 110 |
| misure mm – B | 103 |
| misure mm – C | 119 |
| misure mm – D | 135 |
| misure mm – E | 281 |
| misure mm – F | 257 |
| misure mm – G | 147 |
| misure mm – H | 150 |
| Osculati part number | 16.106.02 |
