Product overview
Doppia autoclave a contollo elettr. 2,5 bar 52 l/m
Construction and features

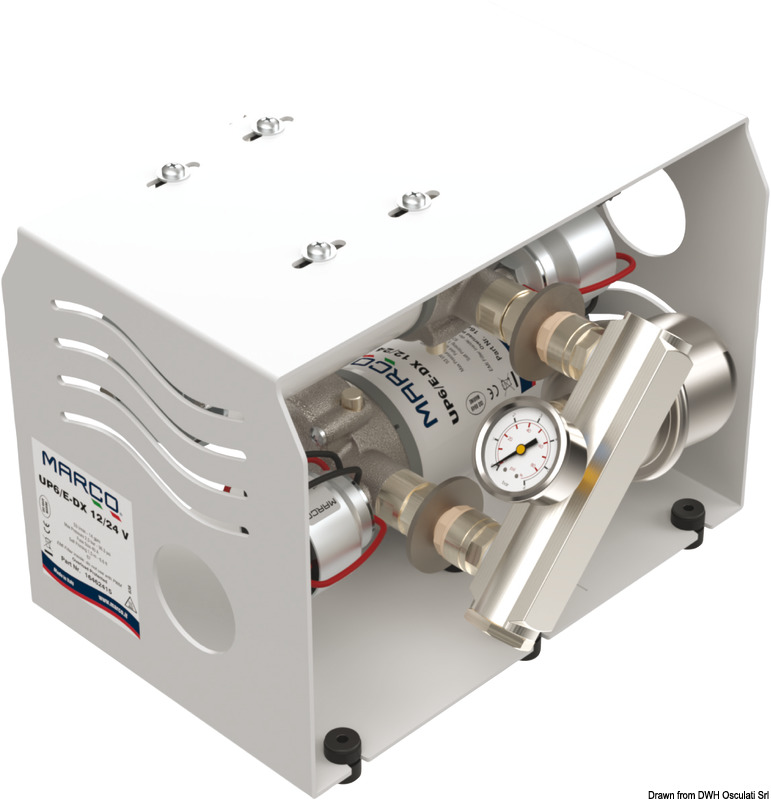

Double version with two electronically controlled pumps, working in parallel.
If a pump fails, the water service is not interrupted due to the presence of a second pump.
Motor speed adapting to the flow. Reduced current draw and noise levels.
No accumulator tank.
Fitted with overvoltage protection device and a locking system against dry running.

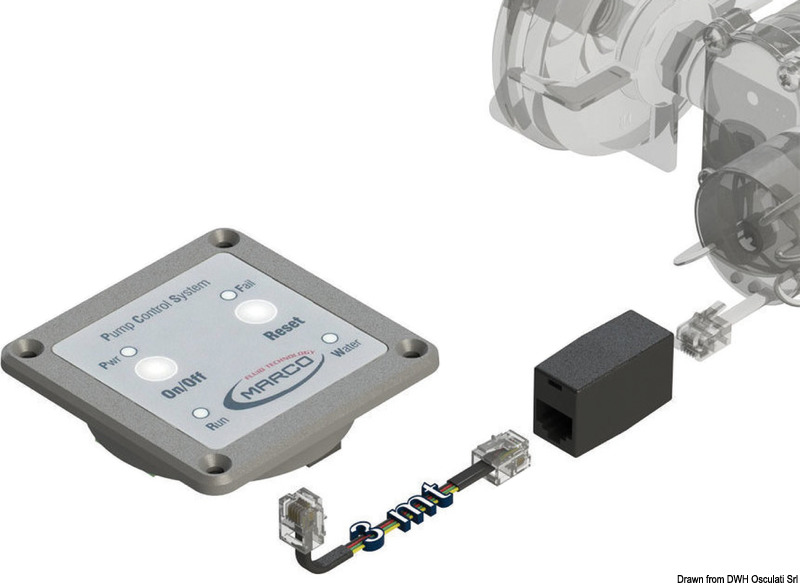

The pump operation can be monitored by means of 2 LED lights.
Technical specifications
| Type | UP6/E-DX |
|---|---|
| V | 12/24 |
| Max flow ratel/min | 52 |
| Current draw A – 12V | 16 |
| Current draw A – 24V | 8 |
| Pressure bar | 2,5 |
| misure mm | 282x300x235 |

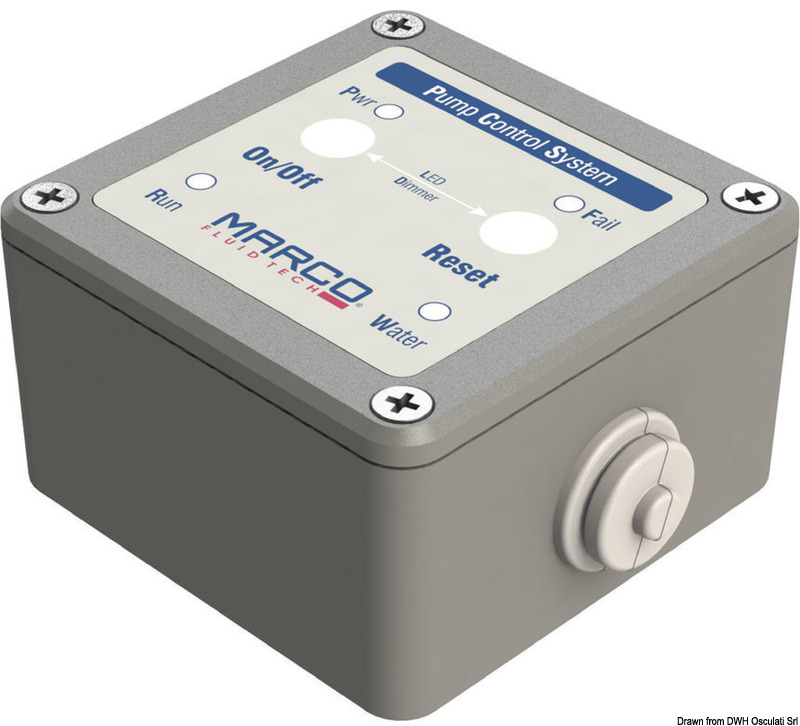

| 2 control panels | [16.081.20] INCLUDED |
| peso | 14 |
| Osculati part number | 16.047.35 |
