Product overview

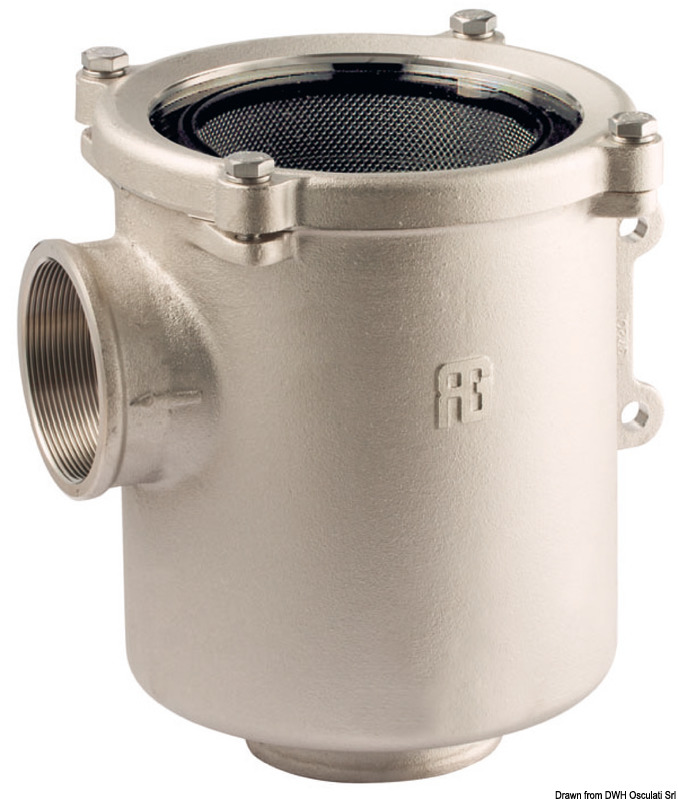

GUIDI Ionio water strainer 1″1/2.
Construction and features
Made of nickel-plated bronze with polycarbonate cover. Cup model fitted with side outlet and one on the bottom. Strainer made of AISI316 stainless steel and neoprene seals..

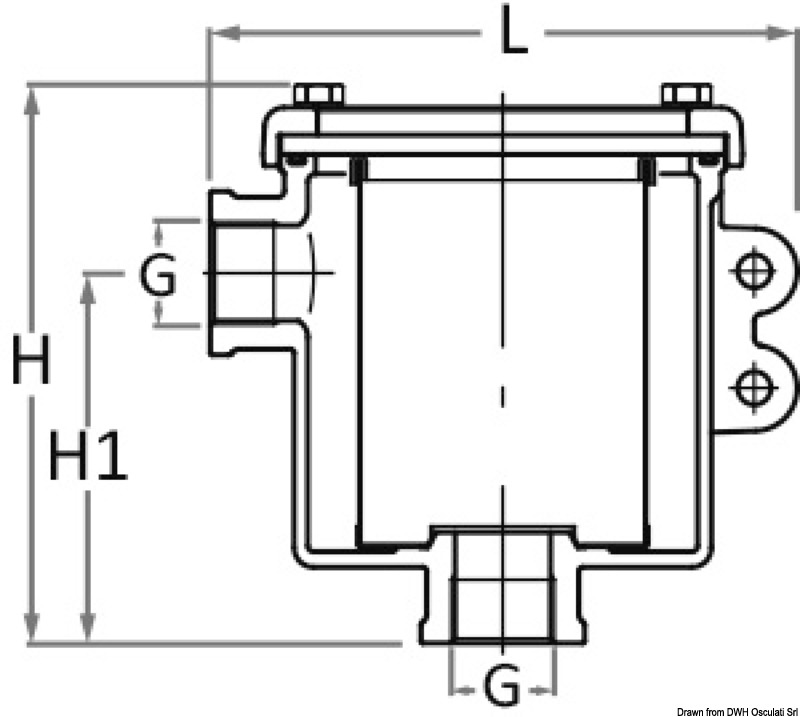

Technical specifications
| Ø nozzles G | 1" 1/2 |
|---|---|
| L mm | 180 |
| H mm | 178 |
| H1 mm | 111 |
| Flow rate l/h – 0.1 bar | 19100 |
| Flow rate l/h – 1 bar | 61250 |
| Osculati part number | 17.648.04 |
