Product overview

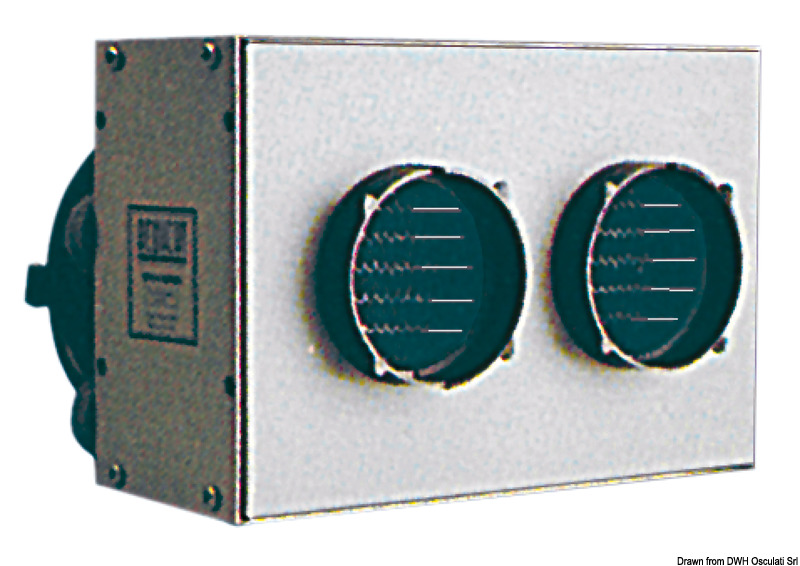

HEATER CRAFT centralised heater 28000 BTU 12 V
Construction and features
Mounting is possible where needed. Two 75-mm Ø hoses connect to two adjustable outlets for bulkhead mounting. Same technical features as model 50.263.00. The kit includes a heater, a 4-position switch panel, mounting bracket, 3.6-m hose, 2 outlets, electrical cable and screws. Techniques of mod. 50.263.00. Kit includes heater + 4-position panel switch + mounting bracket + 3.60 m of pipe + 2 nozzles + electrical cable + screws. Utilizes the engine's cooling water to transfer heat into the cabin. 3-speed motor, extremely simple and quick installation.
Technical specifications
| V | 12 |
|---|---|
| Consumption at 3 speeds | 3,9 – 5,0 – 7,7 A |
| Calorific yeld | 28.000 BTU/hour with water volume 11 l/min at 76° and with ambient temperature 15° |
| Osculati part number | 50.263.01 |
