Product overview
ISOTHERM ITC cooling unit + evaporator max 200 l
Construction and features

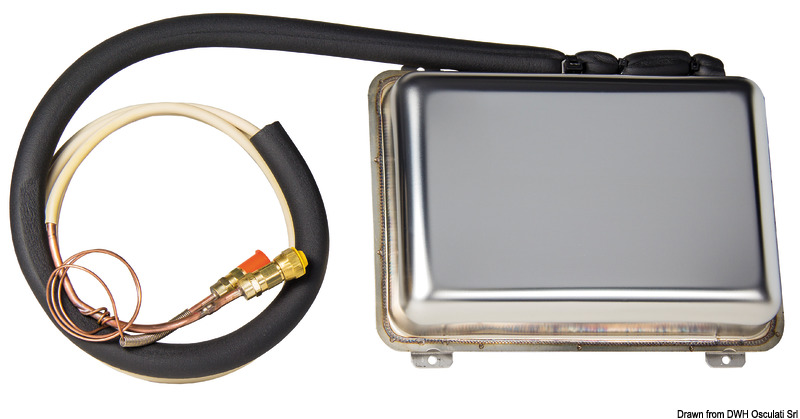

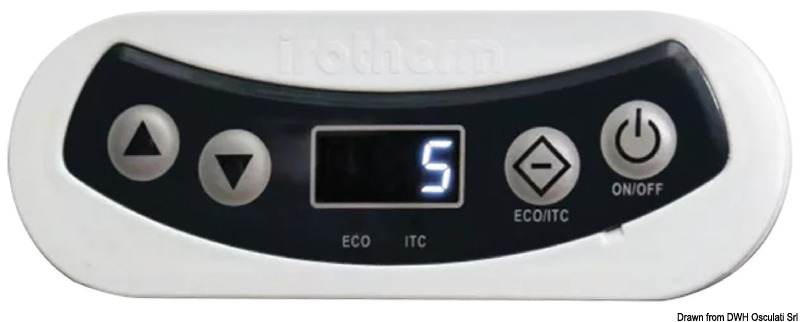

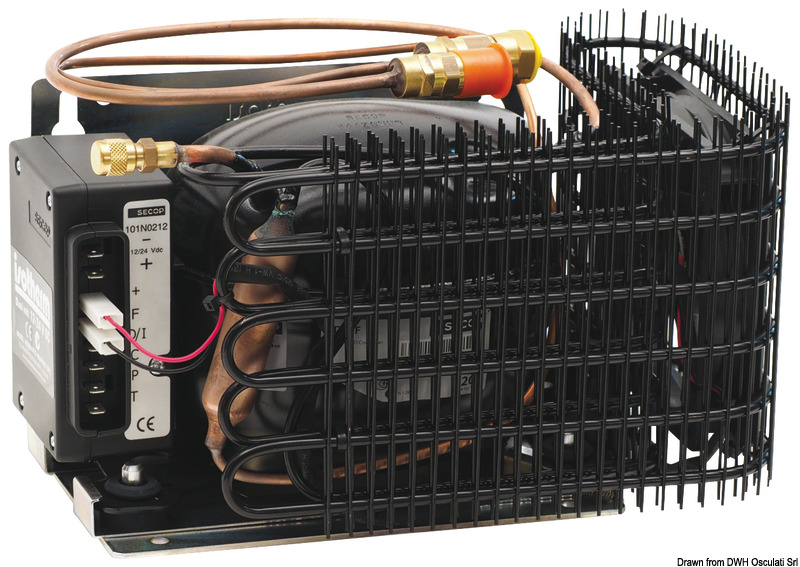

Kit including ventilated evaporator box and compressor whose combination reduces current draw by 25-30%. The ITC electronic systems makes the compressor work in Soft Start mode and manages the Fast Cooling and Over Cooling functions: when the boat engine is on, the ITC detects a current surplus and makes the compressor work at its maximum operation rate for faster cold storage; when the boat engine is off, the compressor works at minimum rate to ensure the minimum temperature setting. The ITC electronic system enables Soft Start of the compressor and manages key functions such as Fast Cooling and Over Cooling: When ITC (with the boat engine running) detects a current surplus, it makes the compressor work at maximum to accumulate more cold in less time. When, on the other hand, the boat's engine is off, it makes the compressor work at the minimum required to maintain the set temperature. Digital panel for temperature control. Battery Protection with 3 Selectable Levels. NIDEC (Secop) 12/24 V compressor with air cooling. Click-On compressor fixing system.
Technical specifications
| Max volume – Fridge | 200 |
|---|---|
| Max volume – Freezer | 65 |
| V | 12/24 |
| Compressor | BD50F |
| Temperature range | +2° -6° |
| misure mm – Evaporator | 355x280x90 |
| misure mm – Compressor | 330x160x175 |
| Osculati part number | 50.931.94 |
