Product overview

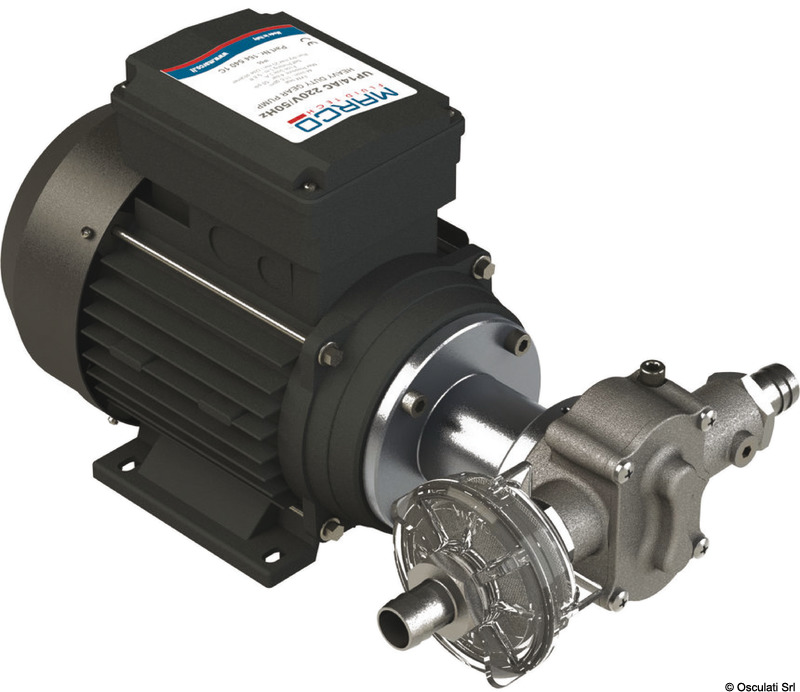

MARCO self-priming pump for AC systems 230V 22 l/min
Construction and features
For systems requiring continuous water circulation.
They ensure stable and lasting operation by automatically restoring the flow and thus avoiding the problem of system emptying caused by the vessel’s oscillations due to waves and hull inclination.
Nickel-plated brass body, stainless steel shaft and PEEK gears, ideal for both fresh and saltwater environments, ensure high wear resistance even under severe operating conditions.
Technical specifications
| Initials | UP14-AC |
|---|---|
| V | 230-50Hz |
| Current draw A | 1,7 |
| Flow l/min | 22 |
| Head m | 3 |
| Pressure bar | 4 |
| Watt | 550 |
| Input | 3/4" |
| Output | 3/4" |

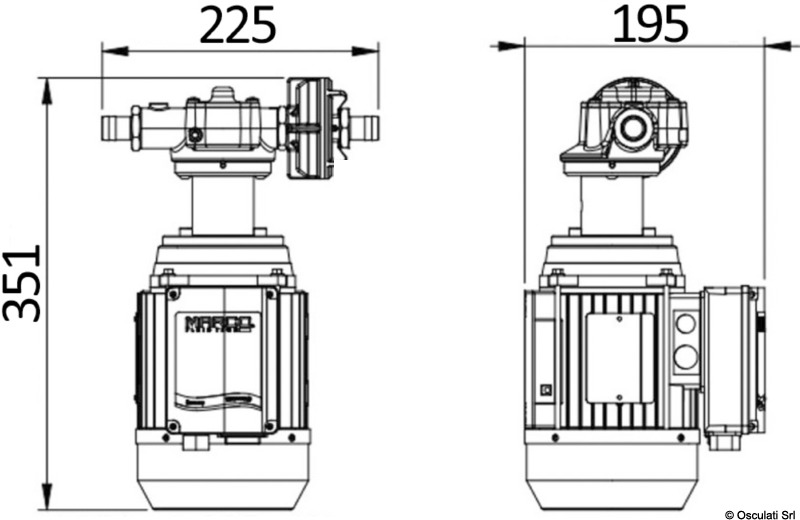

| misure mm | 351x225x195 |
| Osculati part number | 16.534.30 |
