Product overview

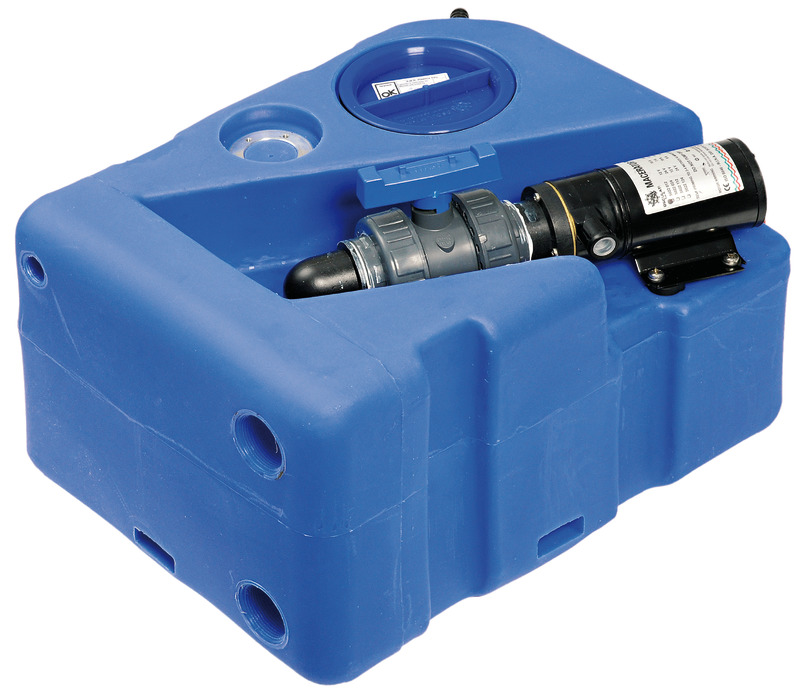

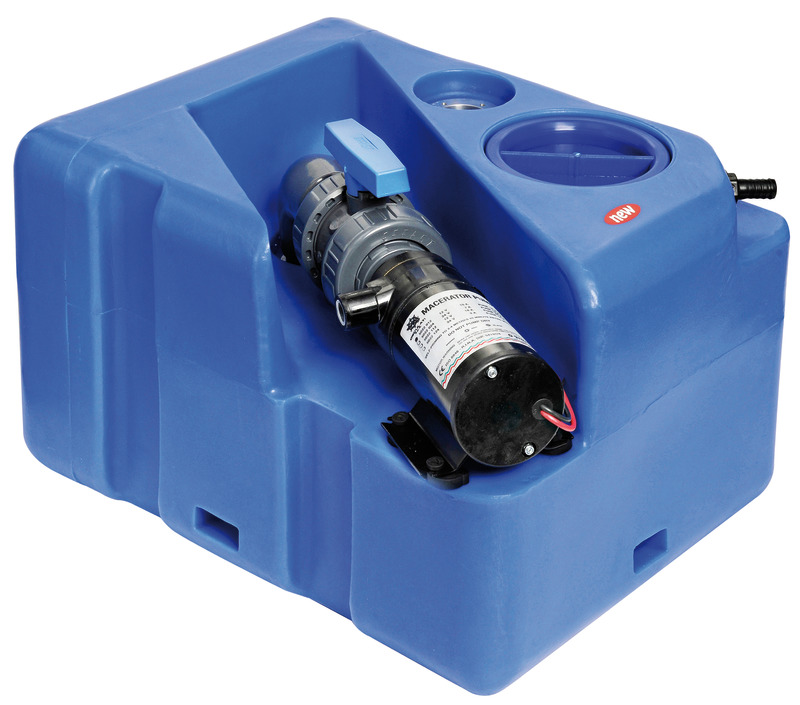

Waste water tank w/horizontal soaker 40 l 24 V
Construction and features
Sold already mounted and ready for installation. Compatible with all manual and electric WC. EQUIPPED WITH: electric soaker; 1” 1/2 + 3/4” loading female threads; 3/4” vent female threads; 1” 1/2 manual emergency drain female threads; housing for fastening hooks 52.195.00; shut-off valve for soaker drainage in case of maintenance; 5-bore flange for level sensor (sensor to order separately); protection for sensor level. Manufactured in compliance with the ISO 8099 standard.
Technical specifications
| Net volume l | 40 |
|---|---|
| V | 24 |
| Macerator included | [50.222.14] |
| Macerator outlet Ø mm | 25 |
| Max length for float cm | 25 |
| misure mm – A | 500 |
| misure mm – B | 390 |
| misure mm – C | 300 |
| SS plate for tank fastening OPTIONAL | [52.195.00] |
| Osculati part number | 50.147.51 |
