Product overview

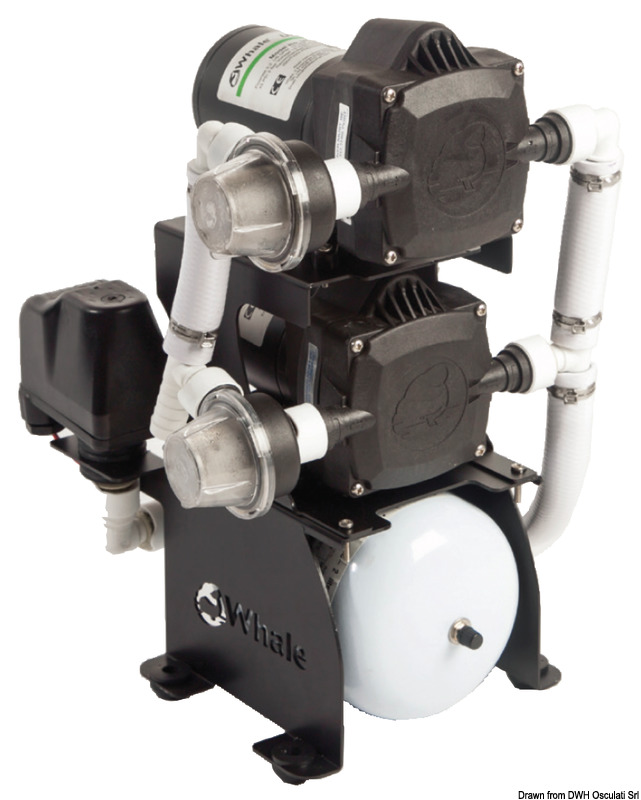

WHALE high-flow rate fresh water pump 24 V
Construction and features
• Two pumps and an accumulator tank ensure a constant water flow rate up to 8 outlets.
• The efficient control systems activates one or two pumps depending on the flow rate required.
• The accumulator tank reduced noisiness and vibration by avoiding the pumps to repeatedly switch on and off.
• The industrial-type external pressure switches have sparkle protection and relays are not needed.
• Retrofitting or installation on new equipment
• Pre-assembled kit for quick installation includes: 2 integrated pumps, 2 external pressure swithces, 2 strainers, 1 accumulator tank, mounting brackets and fittings.
• Mounting brackets with vibration-damping feet for reduced dimensions at the base.
Technical specifications
| V | 24 |
|---|---|
| Flow l/min | 32 |
| Storage can | 2 litres |
| Quick connection input/output | 19 |
| Maximum Consumption A | 8 |
| Pressure bar | 3 |
| Outlets | up to 8 |
| Maximum suction m | 3 |
| peso | 11 |
| Osculati part number | 16.703.24 |
